12510 special tray for tobacco (suitable for three-dimensional warehouse)

Dimension:1250×1000×150mm

Folk Lift Slot Height:110mm

Base Structure:Three-Runner

Application:Suitable for AS/RS, ground and rack operations

Folk Lifting Entry:Four way entry, suitable with folk lift, stack crane, pallet AGV and pallet jack.

Dynamic Load Capacity:1500kg

Static Load Capacity:6000kg

Load Capacity on Rack:800kg

Material:Impact Resistance HDPE, Square Steel Tube

Weight:20.5kg±0.5kg





Product description
Parameters




TS12510H2 4 Way Rack Pallet (7 steel tube built-in)



Dimension 1250×1000×150mm Dynamic Load Capacity 1500kg
Folk Lift Slot Height

110mm

Static Load Capacity 6000kg
Base Structure Three-Runner Load Capacity on Rack 800kg
Application Suitable for AS/RS, ground and rack operations Material Impact Resistance HDPE, Square Steel Tube
Folk Lifting Entry Four way entry, suitable with folk lift, stack crane, pallet AGV and pallet jack. Weight 20.5kg±0.5kg

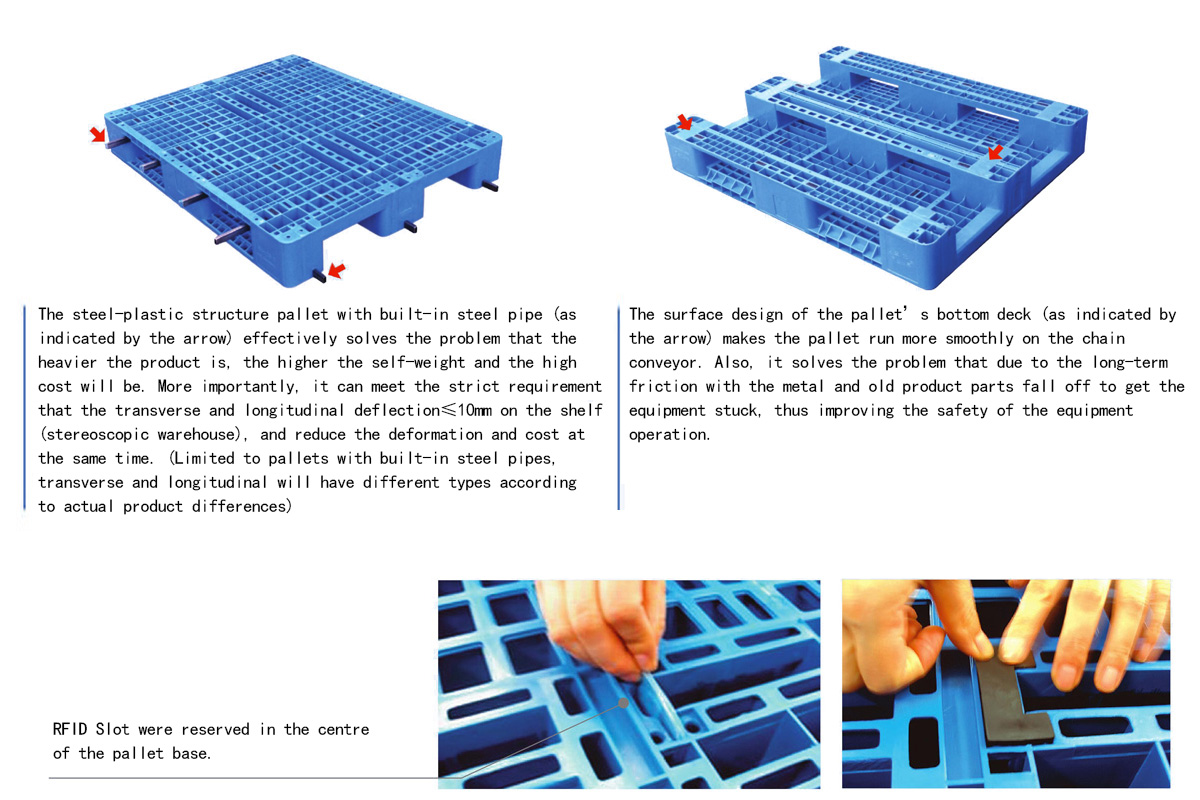

3 steel tube (with dimension 13, 25, 2.2 * 1200mm) placed under 3 runners and 4 (with dimension 13, 25, 1.7 * 1200mm) under the surface. Steel tube were completely sealed in the pallet by cold pressing.
